네이버 HA 카페에 올라온 글 하나로, iOS 재실에 대한 열기가 후끈 달아올랐다.
카페에 올라온 글의 내용을 간략히 정리하면,
ESPresense 3.0 이상버전에서 iOS 재실이 지원된다는 내용과 설정방법을 친절하게 올려주셨다.

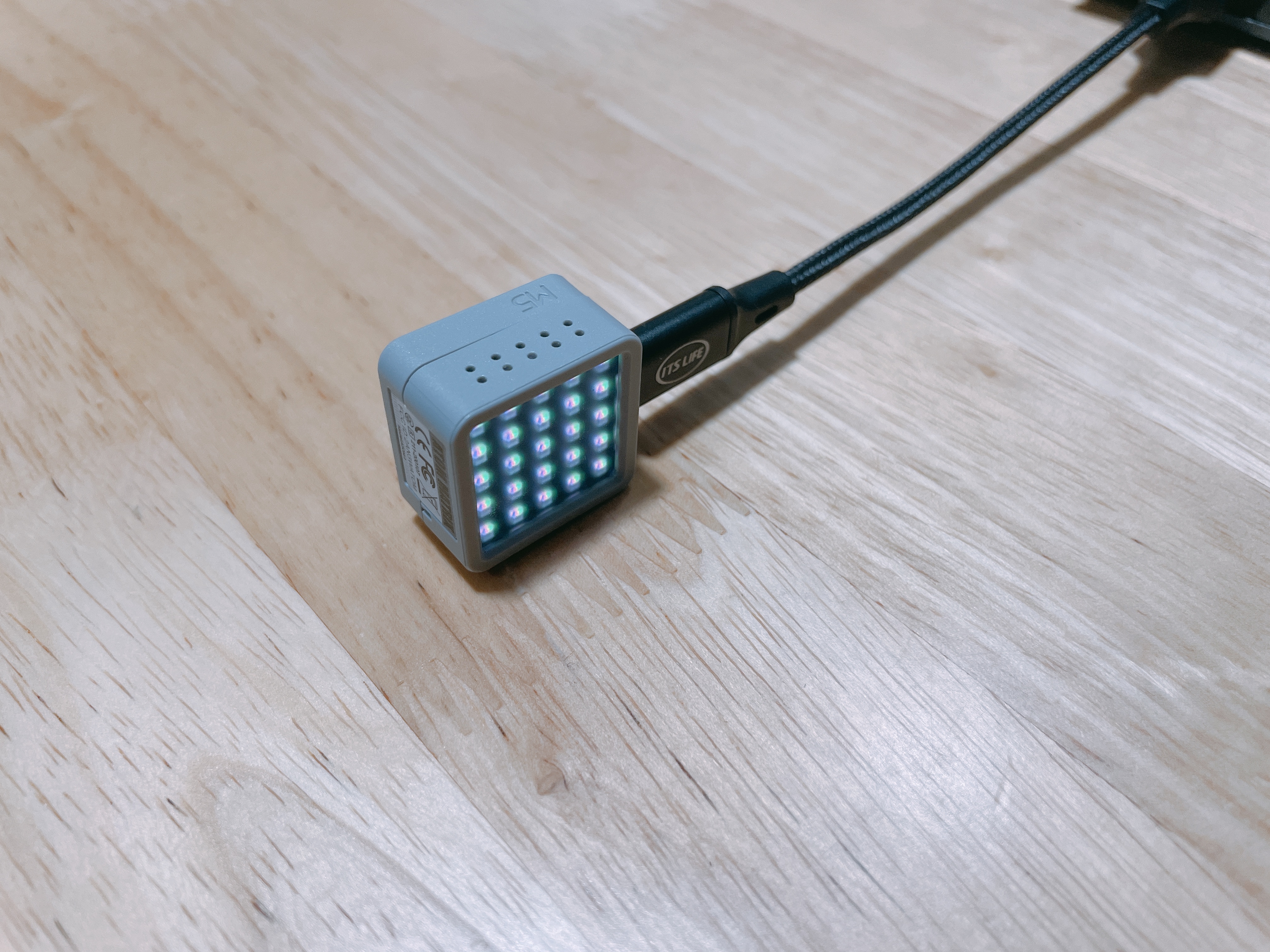

그리고 집에서 놀고 있는 M5atom 2개를 활용하면 되겠다는 생각으로 따라서 설정해 보았다!

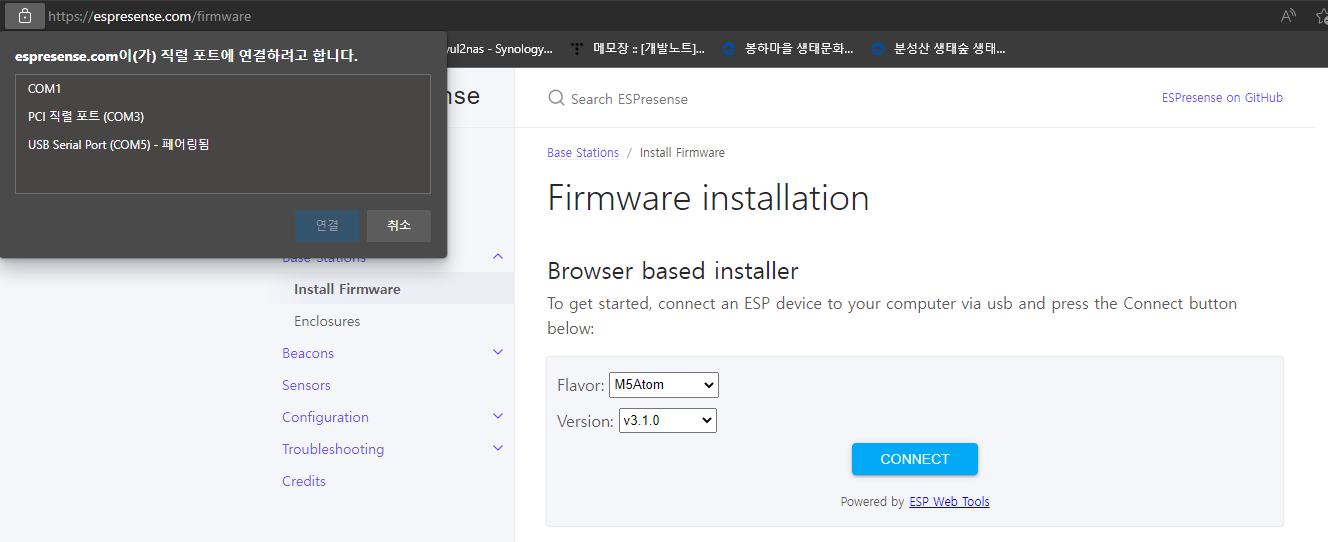

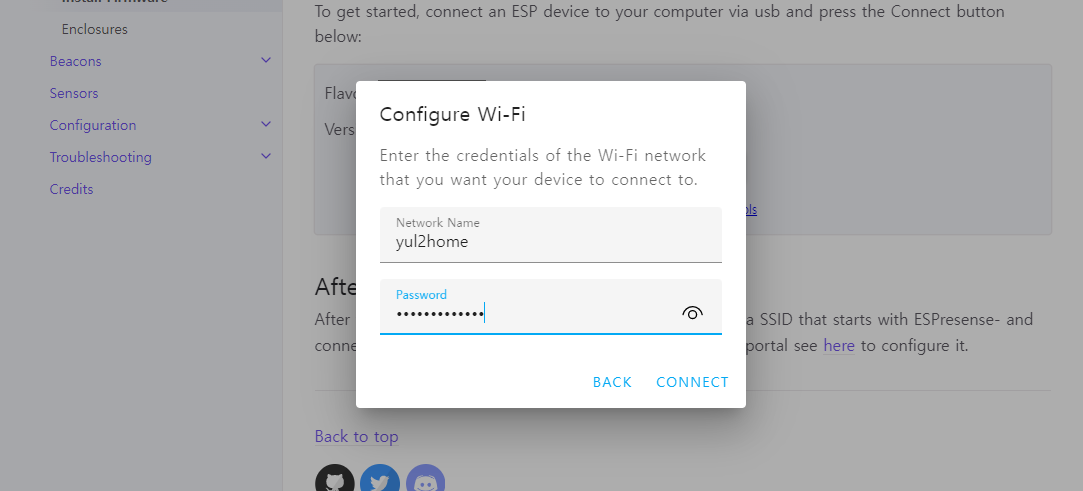

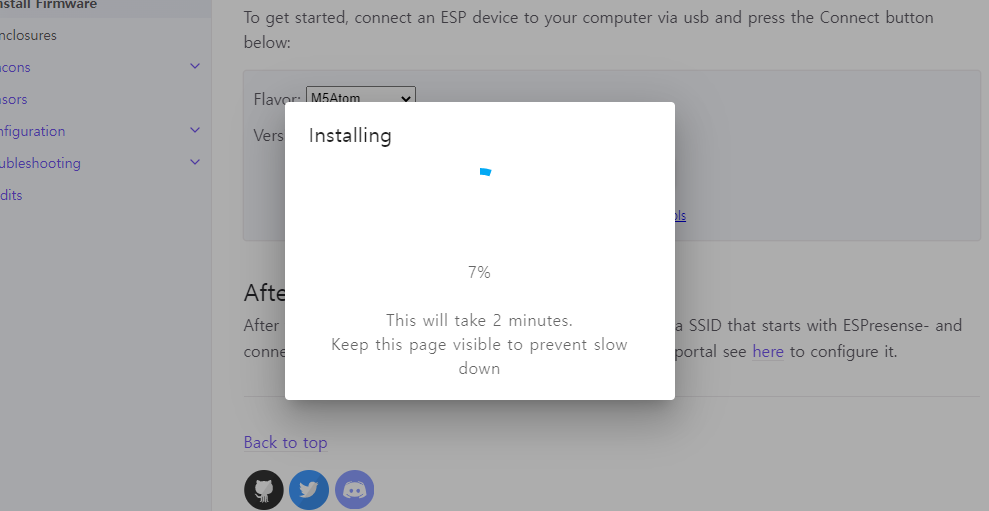

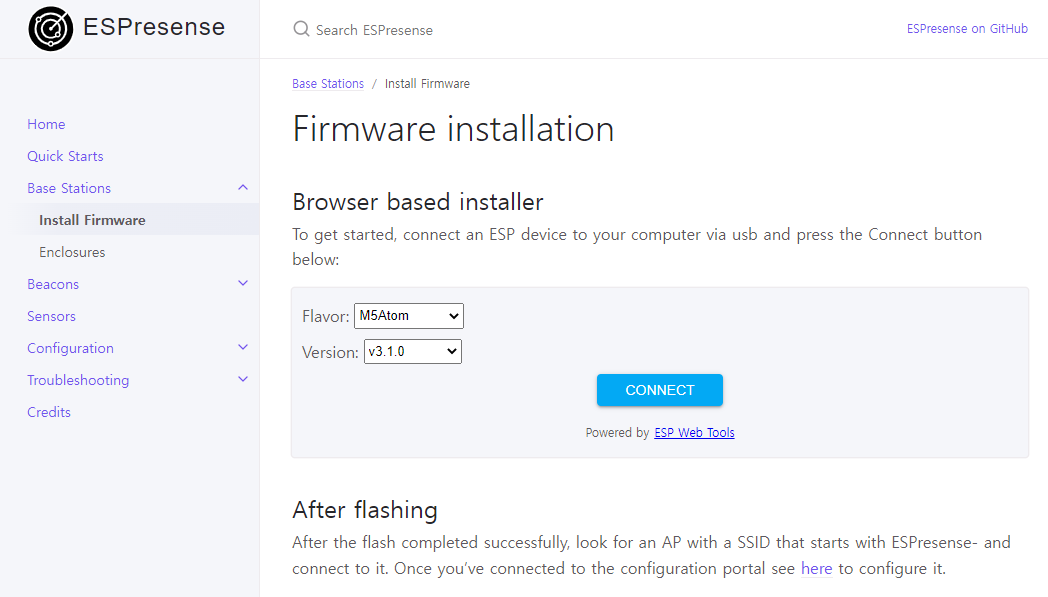

ESPresense Install Firmware 페이지로 접속하면 펌웨어를 쉽게 올릴 수 있다.

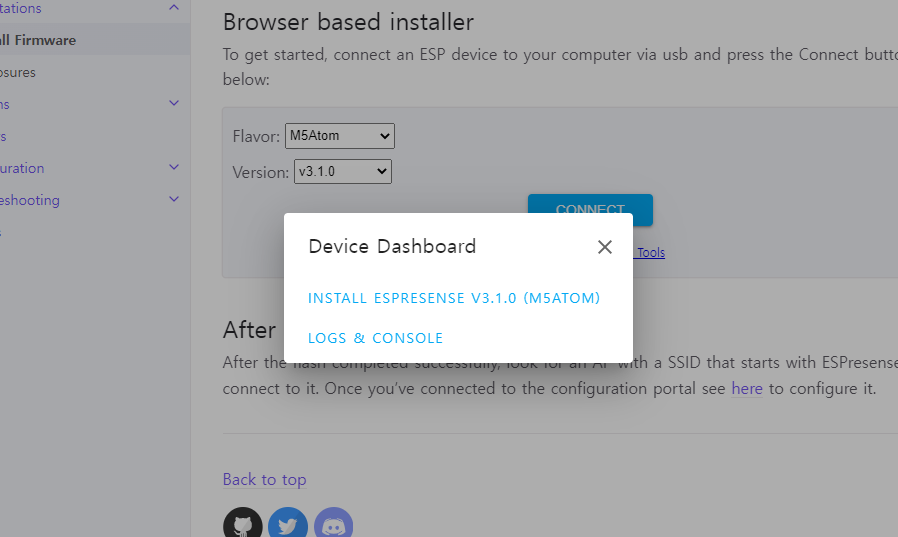

Browser based installer라서 그런지 따로 설치 프로그램도 없이도 지원 장치는 바로 펌웨어를 올릴 수 있어서 완전 편하다!

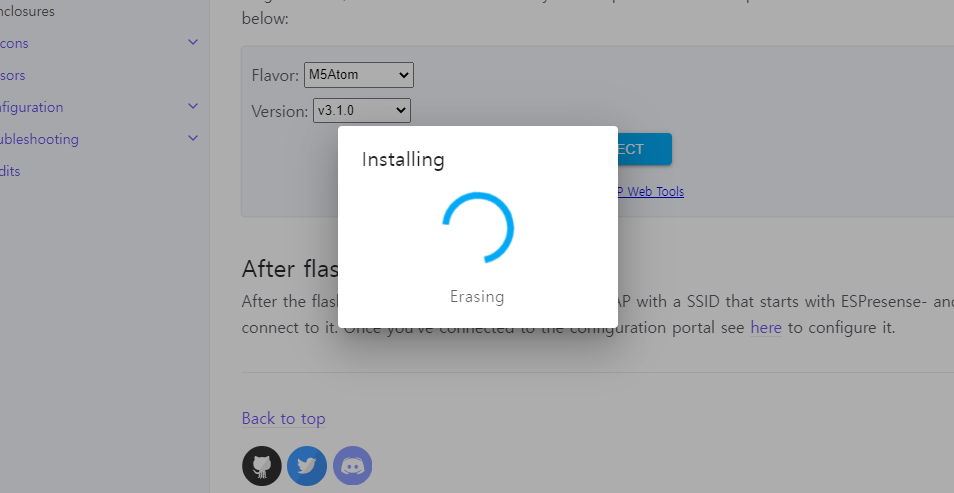

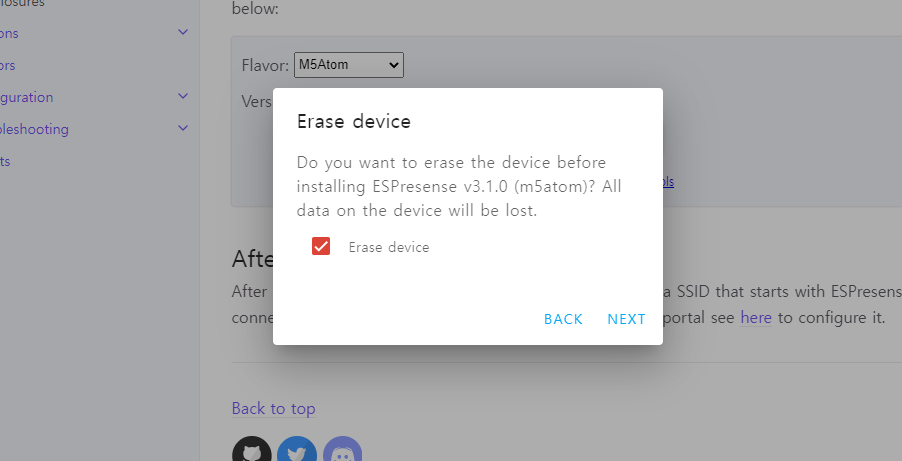

Do you want to erase the device before installing ESPresense v3.1.0 (m5atom)? All data on the device will be lost.

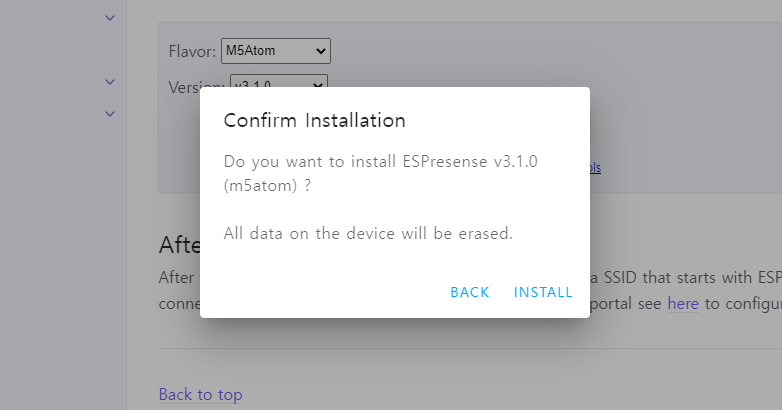

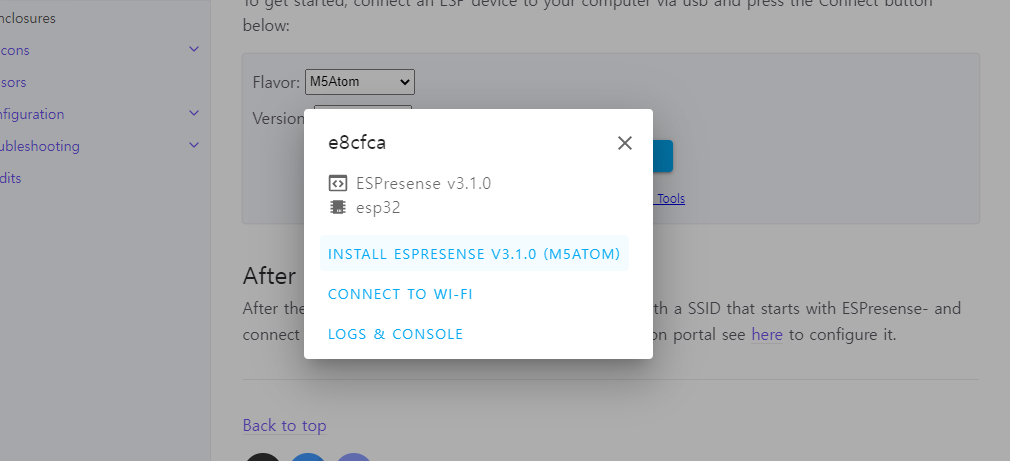

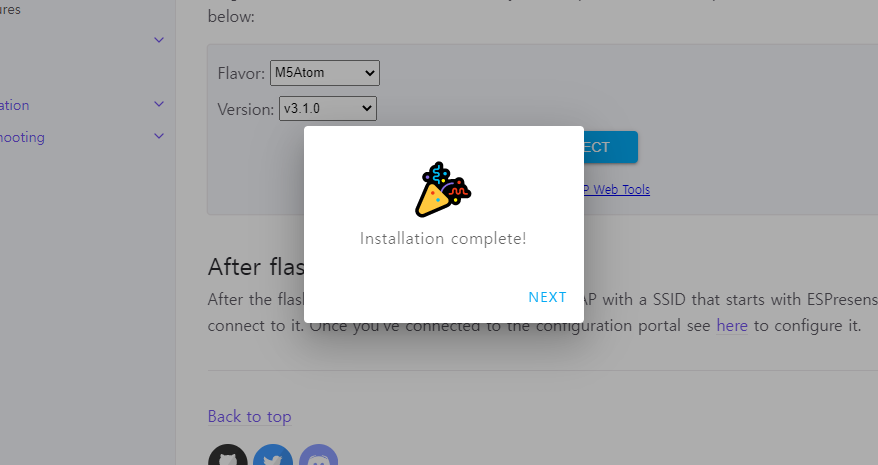

Do you want to install ESPresense v3.1.0 (m5atom) ?
All data on the device will be erased.

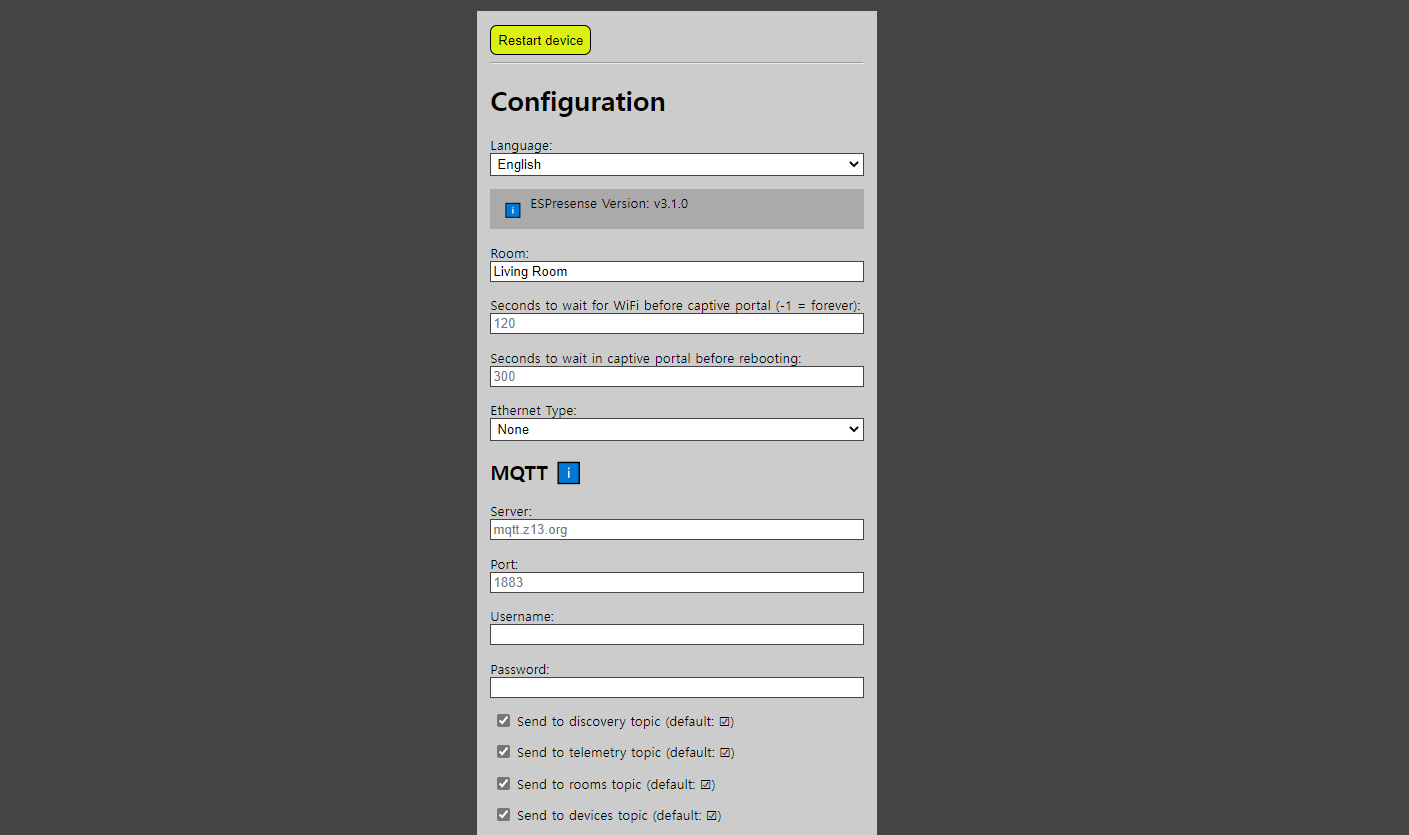

[ Configuraion ]

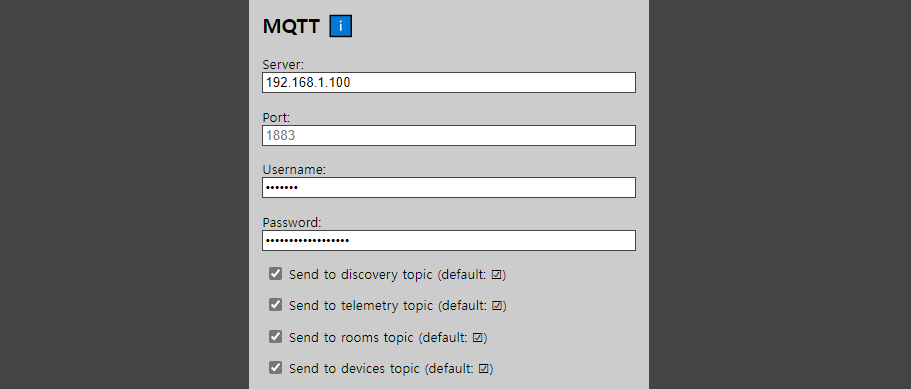

[ MQTT ]

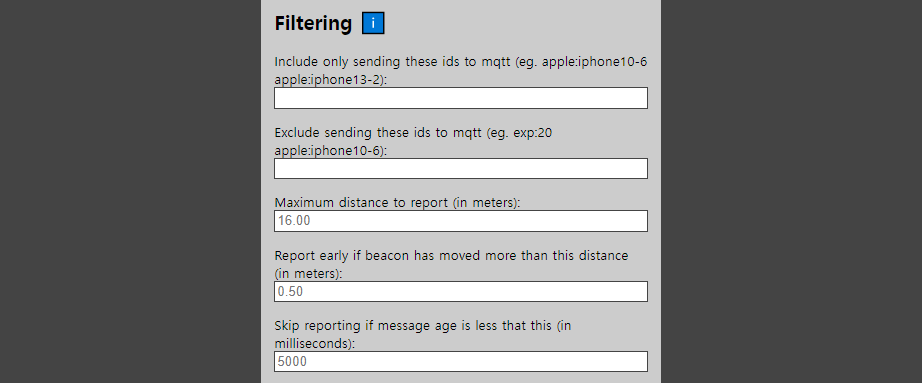

[ Filtering ]

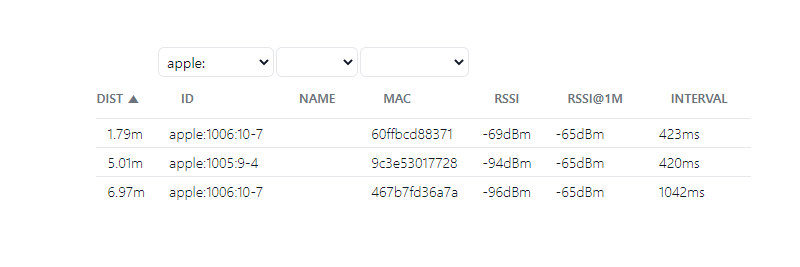

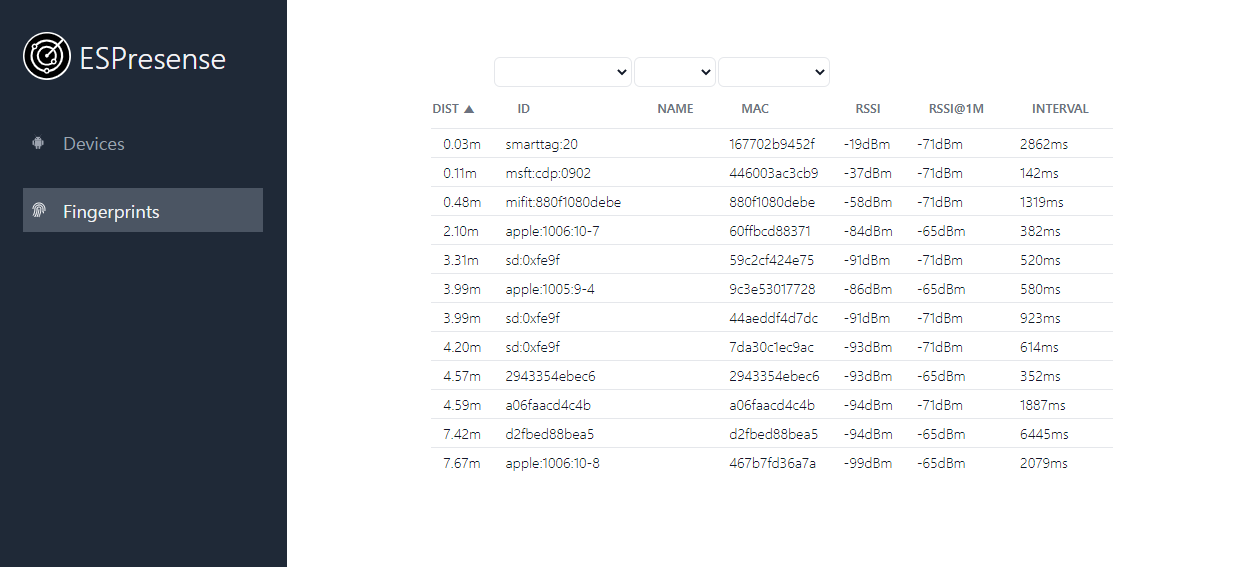

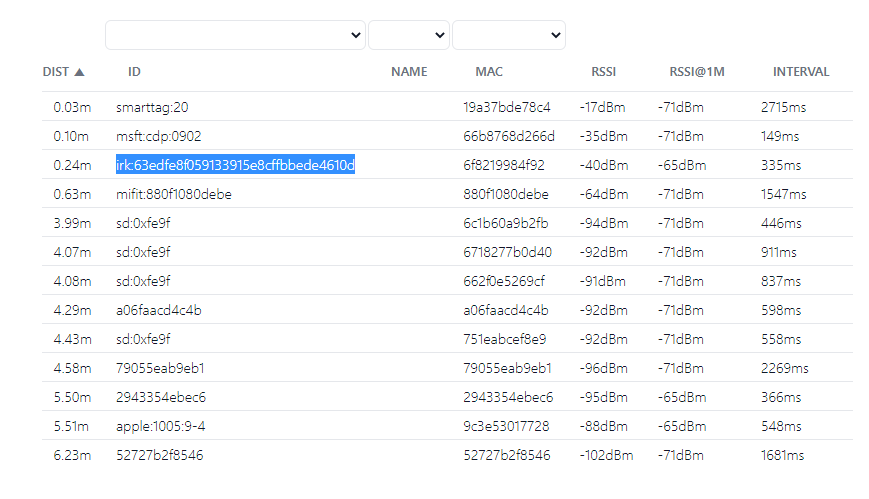

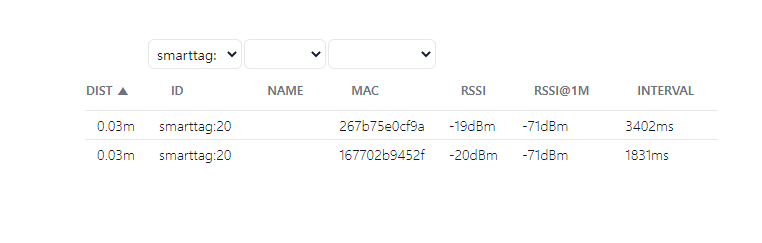

http://{ESPresense IP 주소}/ui/#/fingerprints
- platform: mqtt_room
device_id: "irk:{{ IRK값 }}"

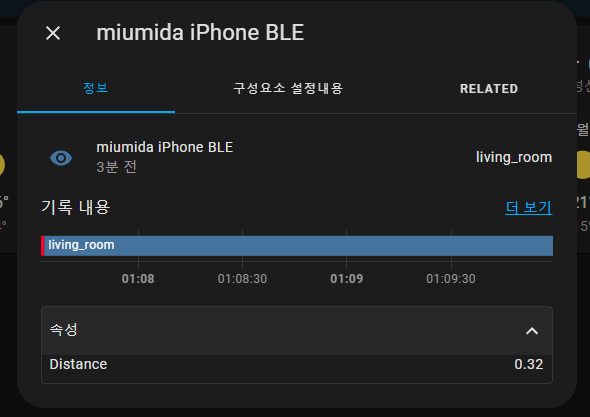

name: 'miumida iPhone BLE'
state_topic: 'espresense/devices/irk:{{ IRK값 }}'
timeout: 10 # 여러개의 ESPresense가 있을 때 timeout 이내의 시간 중 가장 가까운 신호값을 기록함
away_timeout: 30 # 외출로 판단하는 시간
